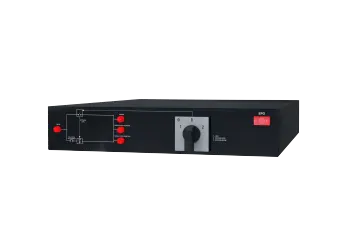

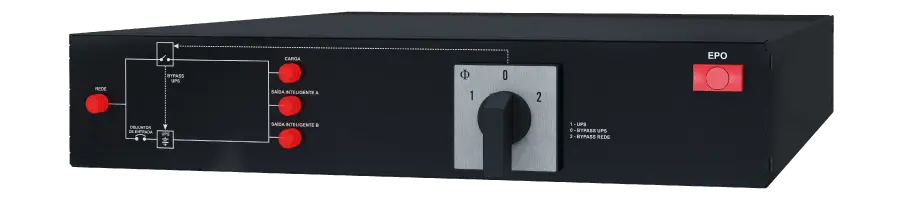

THE QMI01 – Intelligent Control Panel  It offers practicality and safety for maintenance operations in installations with Engetron DWMM Modular (A4) line UPS systems.

Furthermore, the QMI offers intelligent outputs, controlled by the Engetron UPS itself, to power loads under specific conditions. This functionality can be used, for example, to shut down less priority loads during a power outage, extending the autonomy for the rest of the system.

Technical Specifications

Prohibited

• Input Voltage: 220V phase-to-neutral or phase-to-phase.
• Input Connections: Terminals.
• Input Protection: 63A (01 bipolar circuit breaker).
• Input Frequency: 50/60Hz.

Exit

• Output Voltage: 220V phase-to-neutral or phase-to-phase (depending on input).

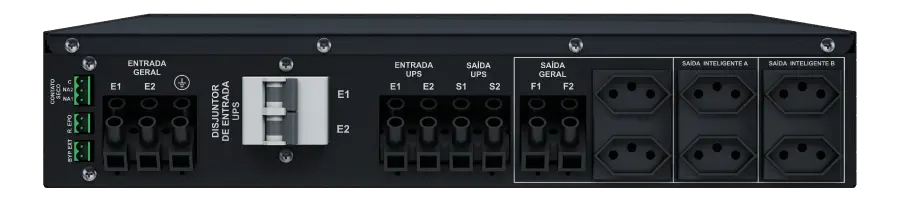

• Output connections: Terminals (general output); 2 x 20A NBR14136 sockets (general output); 4 x 20A NBR14136 sockets (smart outputs A and B).
• Dry Contact – for signaling and control.
• Output Frequency: 50/60Hz.

External Bypass

 Allows for complete removal of UPS systems without interrupting the power supply to the loads.

Visual Signage

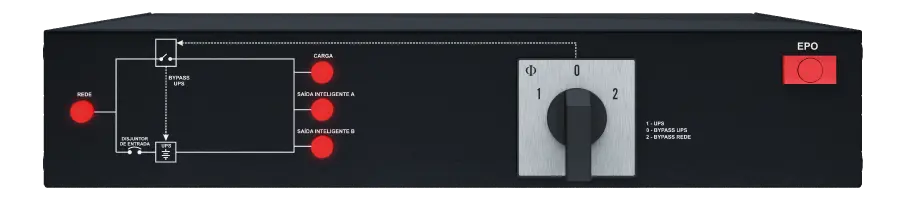

 Indicator lights showing the presence of power at the input and outputs: general, intelligent A, and intelligent B.

Auxiliary safety functions

• Smart Plugs.
• Integrated EPO.
• Bypass signal activated for the UPS.

Weight

• 8.0 kg

Dimensions (LxWxD)

• Rack dimensions: 440 x 89 x 622 mm
• Tower: mm

Warranty Period

The product has a standard 12-month on-site warranty.
