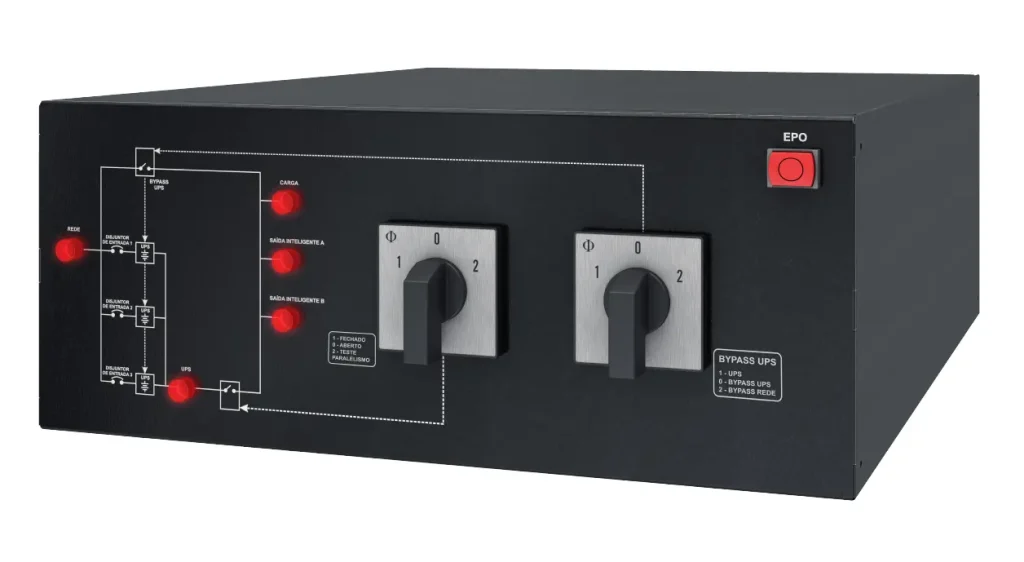

THE QMI03 – Intelligent Control Panel  It offers practicality and safety for maintenance and parallel operation (capacity and redundancy) in installations with Engetron DWMM Modular (A4) line UPSs. It allows parallel operation of up to 3 devices, generally in a 2+1 configuration (3 devices, one of which is redundant).

Furthermore, the QMI offers intelligent outputs, controlled by the Engetron UPS itself, to power loads under specific conditions. This functionality can be used, for example, to shut down less priority loads during a power outage, extending the autonomy for the rest of the system.

TECHNICAL CHARACTERISTICS

Prohibited

• Input Voltage: 220V phase-to-neutral or phase-to-phase.
• Input Connections: Terminals.
• Input Protection: 3 x 63A (bipolar circuit breaker).

 Exit

• Output Voltage: 220V phase-to-neutral or phase-to-phase (depending on input).

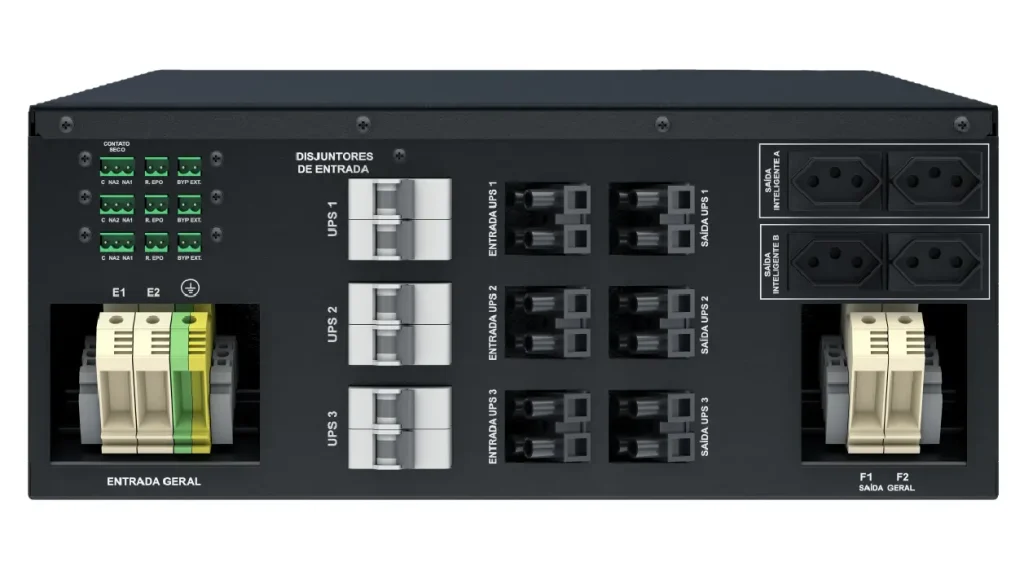

• Output connections: Terminals (general output);
• 4 x 20A NBR14136 sockets (smart outputs A and B).
• Dry Contact – for signaling and control.

 External Bypass

 Allows for complete removal of UPS systems without interrupting the power supply to the loads.

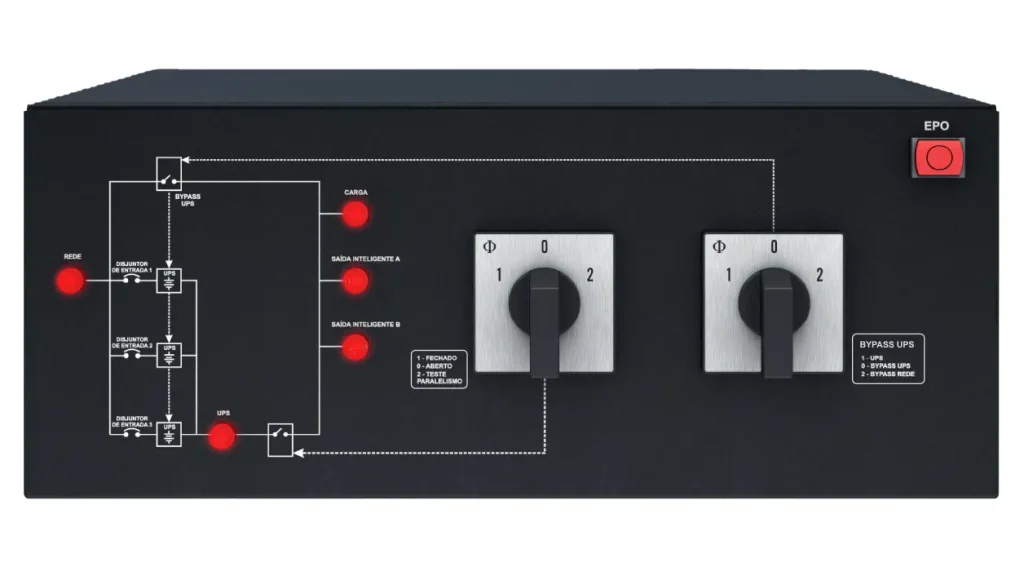

 Visual Signage

 Indicator lights showing the presence of power at the input and outputs: general, intelligent A, and intelligent B.

Auxiliary safety functions

• Smart Plugs A and B with controls to turn loads on and off.
• Dry contact – Interface for controlling intelligent outputs. Uses the contacts available on the DWMM-MA4 series UPS.
• Integrated EPO – Must be connected to the UPS for emergency shutdown.
• Bypass signal activated for the UPS.

Weight and Dimensions

• Weight: 14.2 kg.
• Dimensions in mm: 440(W) x 178(H) x 565(D).

 Warranty Period

This product has a standard 12-month on-site warranty.
