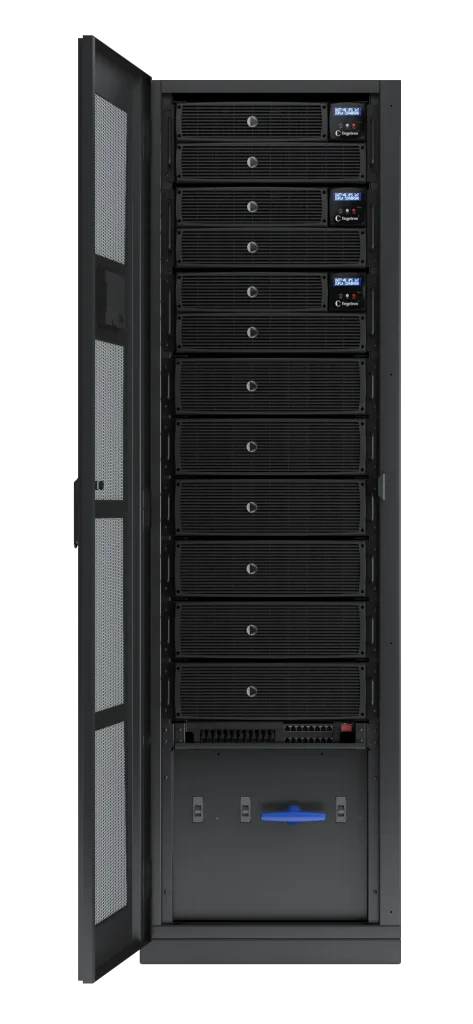

The 60kVA Three-Phase Modular Plug-in Rack UPS offers high power availability with DOUBLE CONVERSION topology and is compatible with the most advanced management and monitoring features.

The modular architecture optimizes energy investment for mission-critical environments, with a scalable solution that adapts to application growth.

Technical Specifications

• Maximum power: 60kVA/60kW;
• Double conversion topology, with pure sine wave output, without interruption in any operating mode;
• Efficiency: up to 96% in DOUBLE CONVERSION and up to 98% in ECO MODE;
• LCD display touchscreen 7” interactive;
• Rack power expansion up to 60kVA, through modules (10kVA each);
• Rack with input, bypass, and output circuit breakers;
• Manual maintenance bypass incorporated into the rack;
• Cable entry and exit points are located at the bottom, allowing for installation under raised floors;
• Rectifier and inverter with IGBT operating in high-frequency PWM technology;
• Three-phase input voltage (FF/FN): 220/127V or 380/220V (3F-NT), depending on the model;
• Allowable variation in input voltage: +/- 15%;
• Input frequency: 50/60Hz;
• Output frequency: 50/60Hz;
• Input power factor: 0.99;
• Three-phase output voltage (FF/FN): 220/127V or 380/220V (3F-N), depending on the input;
• Static regulation: +/- 1%;
• Output power factor: 1.0 (unity, kVA = kW);
• Harmonic distortion: <3% for linear load and <5% for non-linear load;
• Allows for 3 x 20kW modules and up to 6 internal battery modules in the rack;
• Battery Type: Compatible with lead-acid (VRLA), alkaline (Ni-Cd), and lithium-ion batteries;
• Automatic battery self-test;
• Protection against total battery discharge;
• Remote management via the Engetron IoT app;
• Built-in sensors for visualizing quantities via a virtual oscilloscope. Engetron IoT application;
• Ethernet connectivity with remote access via HTTPS, TELNET, and SNMP;
• Event and alarm notifications;
• Real-time monitoring;
• Configuration of automatic actions based on alarms registered by the UPS;
• Graphical reports;
• Protection against: overtemperature, overvoltage, short circuit, network noise, frequency variations and switching transients.

Weight

• 400.0 kg

Dimensions (LxWxD)

• 600 x 2000 x 1100 mm
